Vaccum Brazed Diamond Core Tile Drill Bits

Vaccum Brazed Diamond Core Tile Drill Bits
Vaccum Brazed Diamond Core Tile Drill Bits
Vaccum Brazed Diamond Core Tile Drill Bits

Descriptions

Shank Type
Quick change Hex shank 1/4"
Application
Drilling Porcelain(Grade 5),Granite,Marble,Ceramics,Terracotta,Glass,Quarry Tiles,Travertine
Tip Material
Vaccum brazed diamond core surface
For best results when drilling
1. Pre cool the tile core drill with a brief dip in coolant (water) or pour water around the area you wish to drill.
2. Offer up the tile core drill to the material at an angle of 45°
3. After creating a SMILE cut in the material raise the power tool to 90° and apply gentle pressure.
4. Gently oscillate the tile core drill in the hole, use a regular 5 second bursts during drilling.
5. Make sure the tile core drill is pr-dipped into the coolant (water) before every hole as per point 1.Tiles 10mm plus will need multiple dips.
Drilling vertical tiles on walls

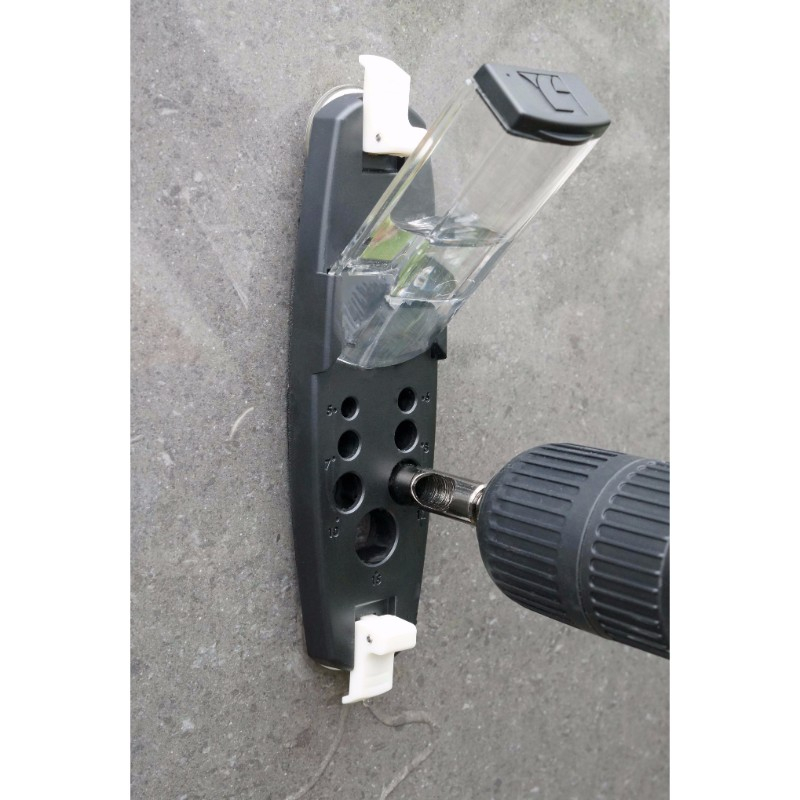

Pre cool the tile core drill with a brief dip in coolant (water) if drilling hole sizes 5,6,7,8,10,12,15mm use the tile core drill guide water dispenser for best results.
If water dispenser is not used follow point 1 to 5.

There are no downloads for this product.

Code Description Diameter Shank Type Overall Length (mm) Core Depth Pack Qty Packaged In/On Suitable for Price Quantity
C240-0070 6.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 6.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Red plugs
£7.91 (inc VAT)
£6.59 (exc VAT)
RRP £21.98 (exc VAT)
In Stock
C240-0071 7.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 7.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Brown plugs
£7.91 (inc VAT)
£6.59 (exc VAT)
RRP £21.98 (exc VAT)
In Stock
C240-0072 8.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 8.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Fisher nylon plugs
£8.70 (inc VAT)
£7.25 (exc VAT)
RRP £24.18 (exc VAT)
In Stock
C240-0073 10.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 10.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Blue plugs/8mm pipe
£8.70 (inc VAT)
£7.25 (exc VAT)
RRP £24.18 (exc VAT)
In Stock
C240-0074 12.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 12.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Basin set/10mm pipe
£10.67 (inc VAT)
£8.89 (exc VAT)
RRP £29.63 (exc VAT)
In Stock
C240-0075 15.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 15.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 15mm copper pipe
£10.67 (inc VAT)
£8.89 (exc VAT)
RRP £29.63 (exc VAT)
In Stock
C240-0076 20.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 20.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 19mm copper pipe overflow pipe
£13.27 (inc VAT)
£11.06 (exc VAT)
RRP £36.85 (exc VAT)
In Stock
C240-0077 25.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 25.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 22mm copper pipe
£15.17 (inc VAT)
£12.64 (exc VAT)
RRP £42.13 (exc VAT)
In Stock
C240-0078 30.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 30.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 28mm copper pipe
£16.58 (inc VAT)
£13.82 (exc VAT)
RRP £46.08 (exc VAT)
Out of Stock. Usually available within 5-7 days, please contact us on 0114 241 9318 to discuss availability.
C240-0079 35.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 35.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Waste pipe
£19.25 (inc VAT)
£16.04 (exc VAT)
RRP £53.47 (exc VAT)
Out of Stock. Usually available within 5-7 days, please contact us on 0114 241 9318 to discuss availability.

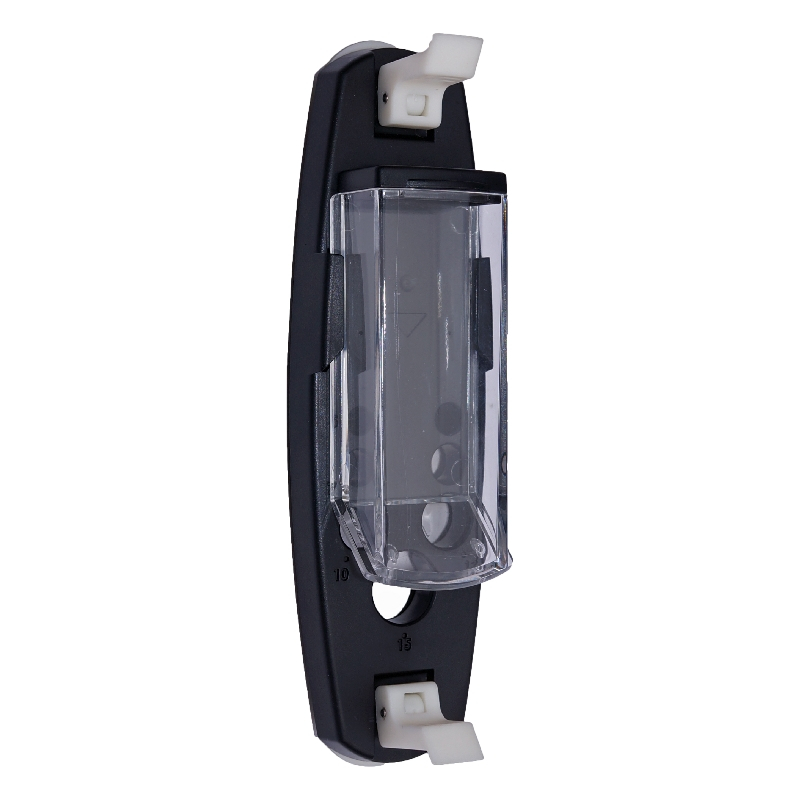

C240-0080 Tile drill guide water dispenser 5,6,7,8,10,12,15mm Tile drill guide water dispenser 5,6,7,8,10,12,15mm 1 Euro hanger
£4.27 (inc VAT)
£3.56 (exc VAT)
RRP £11.87 (exc VAT)
In Stock
